LIGHTWALLTRAP
Absorbent panel
Description

This panel is related to the MELLOWALLTRAP and the WALLTRAP panels, as it is an absorption panel to be applied on walls and ceilings that predominantly absorbs in the mid-range of the sound spectrum.

The similarities end there given that its size, technical characteristics and respective type of mounting are quite different.

It is an acoustic panel that absorbs medium frequencies and has been developed for use in small rooms.

This product is manufactured with raw materials of different mass and density which are duly coupled in order to increase its absorption coefficient as much as possible.

Several panels can be assembled together with surprising results. As regards its size, it is one of the most effective panels available in the market.

Features
  • Uses 65% of recycled materials
  • NRC: 0.73/m2
  • Fire-resistance: Euroclass B (similar to old M1)
  • To apply in large rooms
  • 100% recyclable
  • Installation: accessories included
  • Other sizes available on demand
  • MOTIF finishing available in all models except in LIGR90/120 and LIGC090 models
Go left
Go right
Available Finishings
Regular fabric:
motif finishing
Technical drawings
Product dimensions
Model Height Width Depth Weight
LIG030 30 cm (11.8") 90 cm (35.4") 7 cm (2.8") 3.8 kg (8.4 lbs)
LIG080 180 cm (70.9") 90 cm (35.4") 7 cm (2.8") 20.3 kg (44.8 lbs)
LIG090 90 cm (35.4") 90 cm (35.4") 7 cm (2.8") 11.2 kg (24.7 lbs)
LIGR090 90 cm (35.4") 90 cm (35.4") 7 cm (2.8") 8.7 kg (19.2 lbs)
LIGR120 120 cm (47.2") 120 cm (47.2") 7 cm (2.8") 11.8 kg (26 lbs)
LIGRC090 90 cm (35.4") 90 cm (35.4") 7 cm (2.8") 9.4 kg (20.7 lbs)
  Acoustic properties chart

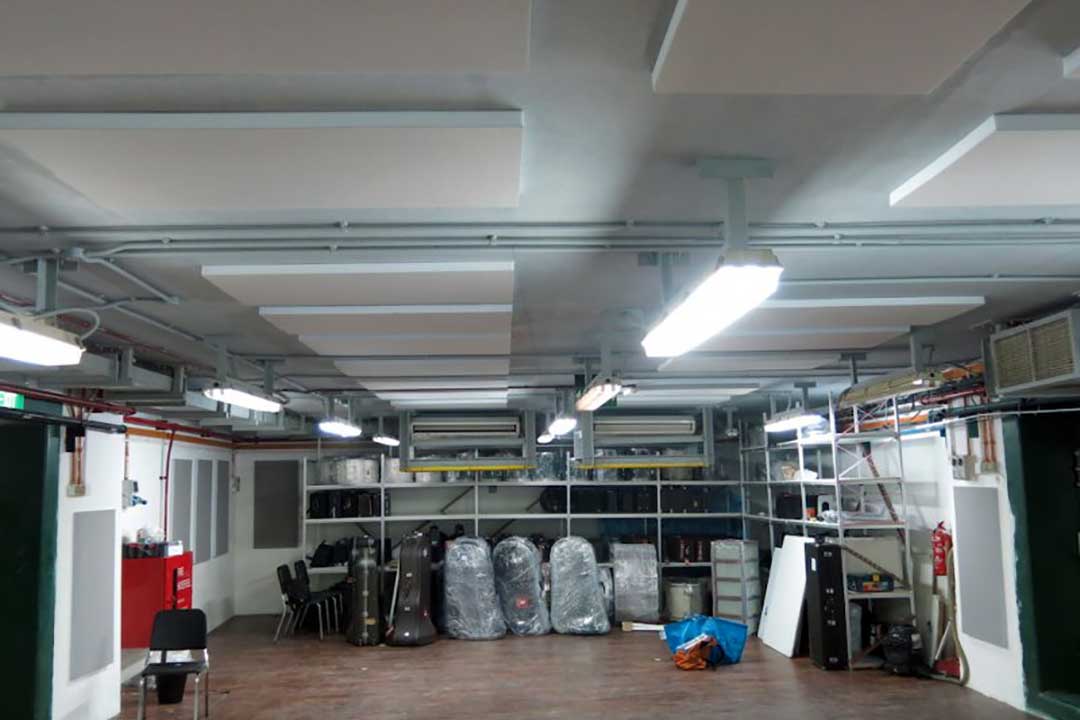

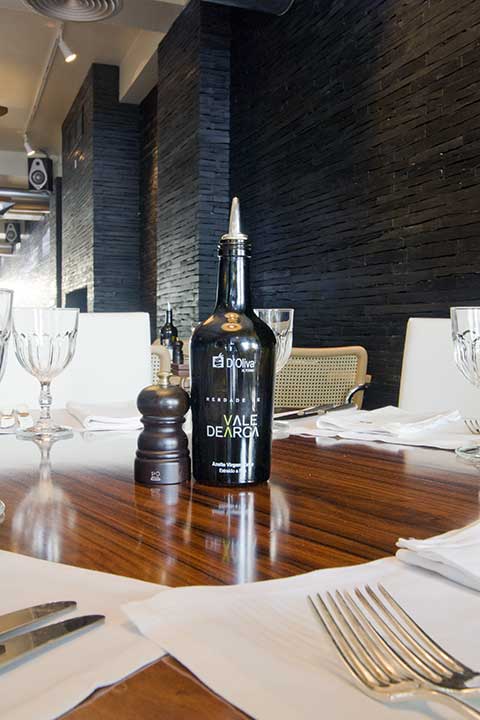

SOME PROJECTS WHERE THE LIGHTWALLTRAP WAS USED
Important notices

JOCAVI™ accepts no responsibility for any printing or display errors. Specifications can be modified without prior notice, if technical or commercial reasons do so require. The colours shown on this catalogue are only a reference and an illustration of the products finishing. The colours shown are not binding because brightness, contrast and colour balance may vary due to the printing process. Colours may vary due to raw-material suppliers' changes and some differences may occur in tonal range. Due to its natural origin, wood-based products will always present natural imperfections inherent to its organic nature. For similar reasons, they will also present traces of old-age in the course of time. Wood and Fabric products are highly susceptible to changes in its appearance with humidity and temperature. Colour examples shown are only for reference. JOCAVI™ cannot guarantee that the colours represented will exactly match the colours of the products shipped, due to the variances among different monitors and printers. Some colour variation may occur between production runs of Acoustic Foam products. Colour consistency in similar products is not guaranteed, some nuances can happen. Colour fading will occur with UV exposure over time. RAL is an international independent colour standard system partner for industry, trade, architecture and design and should be consulted before placing any order. Close attention must be paid to the storage conditions and the acclimatization before, during and after the installation. Typical Indoor Comfort Standards state a temperature range of 20°C - 27°C (68°F - 81°F), and a relative humidity of less than 60%. These would be considered as normal operational levels of JOCAVI™ product range.

JOCAVI™ products are fire retardant and/or self extinguishing to varying extents. Before purchasing any of our acoustic foam products, please check with your local fire marshal or building inspector for approval. We cannot guarantee that any product meets the specific building code regulations in your area/country as regulations widely vary from place to place. JOCAVI™ will not be held liable for property damage or injuries caused by the misuse of our products.

Given the fragility and sensitivity of the raw materials used in the ATP™ product range, we advise and recommend these products are not installed within reach of physical contact by people or objects. Physical contact may damage these products.

Sizes may slightly vary (+/- 3mm) due to their production method and some inherent raw-materials characteristics. Despite all the standard sizes of all products, some models can be customised upon previous consultation. Sizes may slighty vary due to their production method and some inherent raw-materials characteristics.
