WOODFOIL FIXED ACOUSTIC SHELL

Back

Description

The WOODFOIL™ is a slightly concave diffusion panel, made of varnished birch plywood on a soft wood structure. This diffuser is great to be used in concert halls, such as theatres and auditoriums, and is ideal for building acoustic diffusion shells. This model has two options: the WOODFOIL™ diffusion panel, which is made of plain birch plywood, and the WOODFOIL™ Ab, which has different holes that provide it with a higher absorption coefficient. Its format allows us to make the appropriate adjustment, by using several panels and positions through 90º rotations, in order to obtain the goals required for each room. Both the angle and the gyrate of this piece were calculated to provide a more versatile use. When using multiple pieces jointly, the angle of incidence never is too convergent, thus providing a homogeneous scattering diffusion of sound energy, which contrasts with other models from our brand that have a different development conception. The WOODFOIL™ is available in various wood finishings or regular colours, as an option, thus allowing an appropriate background for each space. The mounting process is rather easy by simply using the docking accessories that are supplied.

The diffusing acoustic shells are acoustic treatment elements intended for large volume rooms, such as theatres or auditoriums with a stage where orchestral concerts or mere recitals take place. These acoustic diffusing components are meant to project the non-amplified original sound from the stage to the audience. This will enable people to hear the sound coming directly from its sound sources and instruments, without the electro-acoustic inherent characterization or colouring. This panel also aims to enable the stage and the room to be within the same space and not separate in two by the mouth of the stage. JOCAVI™'s EFFECTFUSER™, WOODFOIL™, PLURA™ and DYNAMICFLOW™ models have been designed at the specific scale of these needs. Due to its shape and depth, they also have a high diffusion coefficient on medium/low frequencies. The all are large-sized diffusers that provide a very homogeneous diffusion within the diffuse and sound spectrum. Manufactured in ABS (except WOODFOIL™ in wood) with a rigid framework, these pieces can be coupled and multiplied in order to suit each project's demands. When mounted, several modules should be grouped so as to obtain an area that is proportional to each space. Mounting: They can be hung from the ceiling in a strategic position in order to obtain sound diffusion in the required angles. They can also be mounted with a motorized rigging system from the stage ceiling. These elements / modules are fastened with steel cables by using appropriate mounting accessories. Their low weight makes mounting easier. As with any other JOCAVI™ diffusion panel, these models can also be applied on false ceilings, flat ceilings or walls. The combination of the various EFFECTFUSER™COMBI and the other models Plates, diffusing pieces must be optimised so as to obtain a diffusion as uniform as possible in the entire room.

Back to top

Features

  • Manufactured in birch plywood
  • Two options: WOODFOIL™ (diffusor) or WOODFOIL™ AB (Diffusion with absorption characteristics)
  • NRC: 0.23m2 (WFL060); 0.62m2 (WFL060AB)
  • Average diffusion WOODFOIL™: 0.68/m2 [>100Hz;<5Hz]
  • Average diffusion WOODFOIL™ AB: 0.51/m2 [>100Hz;<5Hz]
  • Installation: accessories included
  • To adjust the diffusing properties of these models to the room where the product is applied, the placement of these pieces must be taken into account in order to obtain its best performance, for technical support contact us info@jocavi.net.
Back to top

MODELS & SIZES

Models Height Width Depth Weight
WFL Plate 180 180cm (5' - 10 6/7") 120cm (3' - 11 1/4") 19cm (7 1/2") 26Kg (4st 1lbs 6.0oz)
WFL Plate 120 120cm (3' - 11 1/4") 120cm (3' - 11 1/4") 19cm (7 1/2") 21Kg (3st 4lbs 5.0oz)
Back to top

SCATTERING EFFECTS

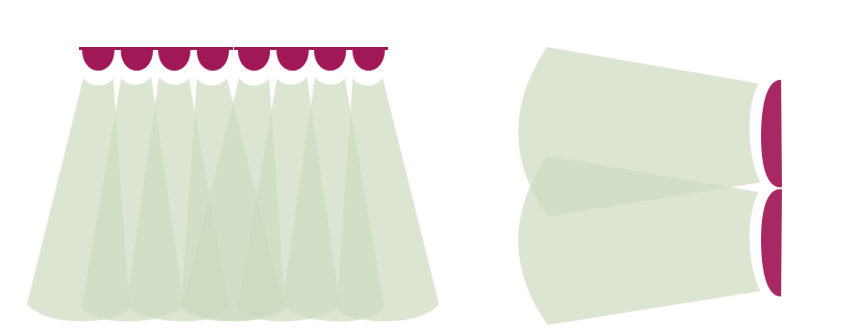

Vertical and horizontal diffusion with scattering effects.

Back to top

FINISHINGS & COLORS

Wood veneers
