DYNAMICFLOW Fixed Acoustic Shell

Back

Description

JOCAVI© has developed this acoustic diffusion panel by using non-linear convex shapes, based on a set of three ellipses which were later altered and optimised in order to achieve an oval shape with better angular diffusion coverage.

The external raw material of this panel was selected out of some materials that have the fastest and most specific properties required for a diffuser with these characteristics. However, the HIPS still has some advantages, namely UV protection, impact resistance and fire resistance M1.

The DYNAMICFLOW's© interior is composed of a substance made of impregnated mineral fibres and textiles, which gives this product a specific mass and also contributes to its consistence. The back part consists of an even surface.

Its shape adjusts to even surfaces. It can be used on "T" profile false ceilings or on walls, by using our glues or fastening materials.

Back to top

Features

  • Manufactured in HIPS
  • Average diffusion: 0.61/m2 [>100Hz;<5Hz]
  • Fire-resistance: M1
  • 100% recyclable
  • Installation: accessories included
  • To adjust the diffusing properties of these models to the room where the product is applied, the placement of these pieces must be taken into account in order to obtain its best performance, for technical support contact us info@jocavi.net.
Back to top

MODELS & SIZES

Models Height Width Depth Weight
DYN Plate 180 180cm (5' - 10 6/7") 120cm (3' - 11 1/4") 11cm (4 1/3") 34Kg (74lbs 16.0oz)
DYN Plate 120 120cm (3' - 11 1/4") 120cm (3' - 11 1/4") 11cm (4 1/3") 25Kg (55lbs 2.0oz)
Back to top

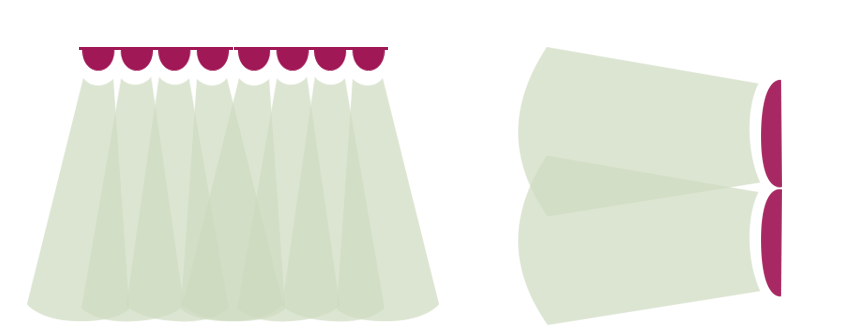

SCATTERING EFFECTS

Vertical and horizontal diffusion with scattering effects.

Back to top

FINISHINGS & COLORS

Standard HIPS Colours

Back to top
